HTTP Request Processing in Spring Boot: Internal Architecture and Thread Management

HTTP Request Processing in Spring Boot: Internal Architecture and Thread Management

Understanding how Spring Boot processes HTTP requests internally is critical for building scalable applications and diagnosing performance issues. This article examines the complete request processing pipeline, from TCP connection establishment through application response generation, with detailed analysis of Tomcat’s NIO connector architecture, thread coordination, and system behavior under load.

The Complete Request Processing Architecture

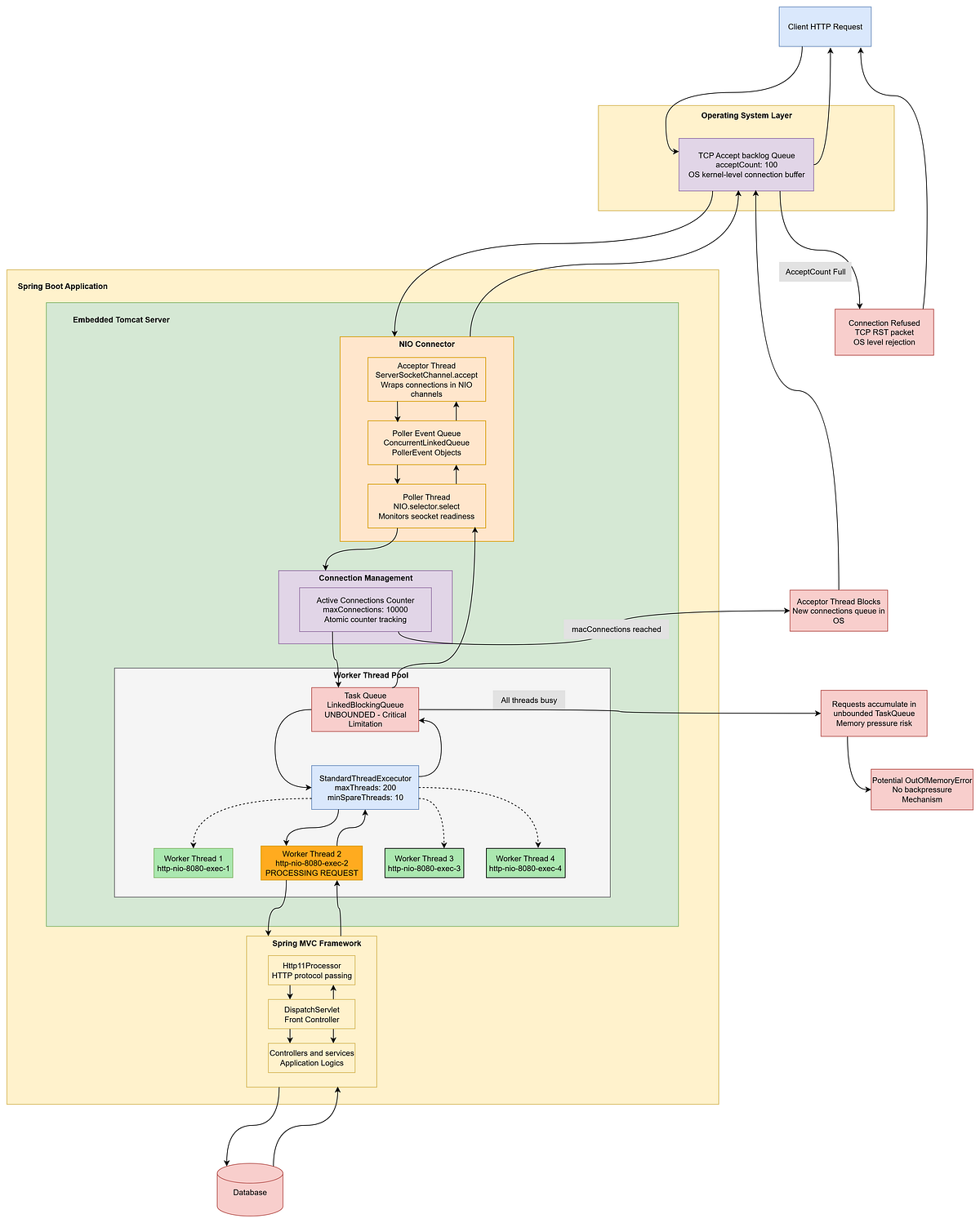

Spring Boot applications utilize an embedded Tomcat server that implements a sophisticated multi-layered architecture for handling HTTP requests. The diagram below illustrates the complete internal flow based on actual Tomcat NIO connector implementation:

The architecture consists of six primary components working in coordinated stages:

1. Operating System Layer — TCP connection management and kernel-level buffering
2. NIO Connector — Multi-threaded connection acceptance and event processing
3. Connection Management — Active connection tracking and resource limits
4. Worker Thread Pool — HTTP request processing with critical queue limitations
5. Spring MVC Framework — Application-level request routing and processing
6. Database Layer — External resource interactions

Operating System Foundation: TCP Accept Backlog

The request processing pipeline begins at the operating system level, where the TCP stack manages incoming connection requests. When a client initiates an HTTP request, the OS network stack performs the TCP three-way handshake and places successfully established connections into the TCP accept backlog queue. The acceptCount parameter (default: 100) directly controls the size of this kernel-level buffer. This queue serves as the first line of defense against connection overload, providing overflow buffering when the application cannot immediately process new connections.

Technical Implementation Details

The TCP accept backlog operates independently of the Java application, using kernel-level data structures to maintain connection state. When this queue reaches capacity, the operating system actively rejects additional connection requests with TCP RST packets, implementing network-level backpressure. This behavior prevents the server from being overwhelmed by connection requests that exceed its fundamental processing capacity.

NIO Connector Architecture: Multi-Threaded Event Processing

Spring Boot’s embedded Tomcat uses the NIO connector implementation, which employs a sophisticated three-tier threading architecture designed for high-concurrency scenarios. This architecture separates connection acceptance, I/O event monitoring, and request processing into distinct thread types with specific responsibilities.

Acceptor Thread Operations

The acceptor thread has one main job: accepting new connections from clients. Here’s what it does:

Single Purpose: One acceptor thread continuously watches for new client connections that want to connect to your Spring Boot application.

Connection Handling: When a client tries to connect, the acceptor thread takes that connection from the operating system’s queue and wraps it in a container that can be passed to other threads.

Handoff Process: Instead of processing the actual HTTP request, the acceptor thread immediately hands off the new connection to poller threads through a shared queue. This keeps the acceptor thread free to accept more connections quickly.

Non-blocking Design: The acceptor never gets stuck processing requests — it only focuses on accepting connections, which prevents new clients from being blocked when the server is busy.

Poller Thread Functionality

Poller threads monitor connections for incoming data and decide when they’re ready for processing:

Connection Monitoring: Poller threads watch multiple connections simultaneously, waiting for HTTP request data to arrive from clients.

Efficient Watching: A single Poller thread can monitor thousands of connections at once without using much CPU.

Request Detection: When HTTP data becomes available on a connection, the Poller thread detects this and creates a task that represents the work needed to process that request.

Worker Thread Assignment: The Poller thread then sends this task to the worker thread pool, where an available worker thread will actually process the HTTP request and generate a response.

Event-Driven Architecture: This design allows the server to handle many simultaneous connections efficiently, since Poller threads only do work when something actually happens on a connection.

The key benefit of this Acceptor-Poller design is that Spring Boot can handle many concurrent connections with just a few threads dedicated to connection management, while reserving the main worker threads for actual request processing.

Connection Management and Resource Limits

The connection management layer enforces the maxConnections limit through atomic counters that track active socket connections. When this limit is reached, acceptor threads block rather than rejecting connections immediately, allowing the OS accept backlog to buffer additional requests up to the acceptCount limit. This two-tier connection control system provides graceful degradation under extreme load conditions. The maxConnections limit prevents resource exhaustion at the application level, while the OS accept backlog provides overflow buffering for traffic spikes that exceed normal processing capacity.

Worker Thread Pool: The Critical Bottleneck

The worker thread pool represents the core of Spring Boot’s thread-per-request processing model and contains the most significant architectural limitation in the entire request processing pipeline. Understanding this component is crucial for diagnosing performance issues and capacity planning.

Thread Pool Implementation

The worker thread pool uses Tomcat’s StandardThreadExecutor , which extends Java’s ThreadPoolExecutor with configuration parameters including maxThreads (default: 200) and minSpareThreads (default: 10). Worker threads are named using the pattern http-nio — exec- for identification and monitoring purposes. Thread lifecycle management includes immediate creation of spare threads at startup, dynamic scaling up to maxThreads under load, and thread parking in the pool for reuse. Each worker thread handles one complete HTTP request lifecycle from protocol parsing through response generation.

The Unbounded TaskQueue: A Critical Limitation

The most significant architectural issue in the entire request processing pipeline is the TaskQueue implementation. This queue extends LinkedBlockingQueue and is unbounded by default, meaning it can accumulate SocketProcessor tasks indefinitely when all worker threads are busy. Unlike the connection-level controls ( acceptCount , maxConnections ) that provide backpressure mechanisms, the TaskQueue lacks any automatic request rejection capability. This design creates a critical vulnerability where sustained high load can cause unbounded memory growth, potentially leading to OutOfMemoryError conditions. The unbounded nature of this queue represents a fundamental architectural gap in Tomcat’s design, where HTTP/1.1 keep-alive connections and HTTP/2 multiplexed requests can accumulate without limit.

Thread-Per-Request Model Deep Dive

Spring Boot implements a synchronous thread-per-request model where each incoming HTTP request is assigned to a dedicated worker thread for its complete processing duration. This model has specific characteristics that determine application behavior under various load conditions.

Request Processing Lifecycle

When a worker thread receives a SocketProcessor task from the TaskQueue:

1. Protocol Parsing: The thread parses the incoming HTTP request, extracting headers, query parameters, and request body content according to HTTP protocol specifications
2. Request Object Creation: Raw HTTP data is transformed into structured request and response objects that the application framework can work with
3. Spring MVC Integration: The request passes through the DispatcherServlet for routing and controller invocation
4. Application Execution: Business logic executes synchronously on the worker thread
5. Response Generation: Application response is serialized and written back to the client
6. Thread Return: The worker thread returns to the pool for reuse

This synchronous processing model ensures request isolation and simplifies application development, as each request maintains thread-local context throughout its processing lifecycle. However, it also means that blocking operations directly impact thread availability.

Resource Consumption Characteristics

Each worker thread consumes approximately 1MB of stack space by default, creating a direct relationship between thread pool size and memory consumption. Thread-local variables and request-scoped objects multiply memory usage per active request, making memory management a critical consideration for high-concurrency applications. The thread-per-request model also creates context switching overhead as thread counts increase. The optimal thread pool size balances concurrent processing capability against CPU efficiency.

Critical Scenario: Thread Pool Exhaustion

Understanding system behavior when all worker threads become occupied is essential for architecting resilient applications and predicting failure modes under load.

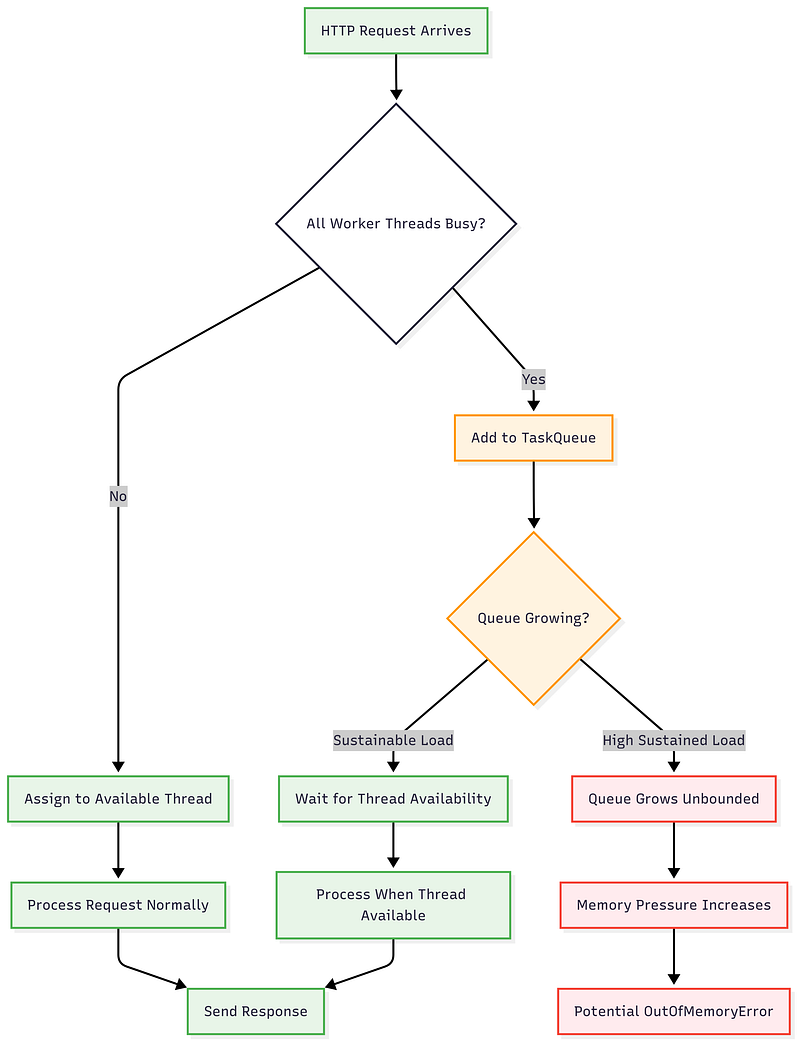

Sequential Degradation Process

When thread pool exhaustion occurs, the system follows a predictable degradation sequence:

1. Initial State: All worker threads are busy processing requests
2. New Request Processing: Poller threads continue accepting socket connections and creating SocketProcessor tasks
3. TaskQueue Accumulation: New requests accumulate in the unbounded TaskQueue , waiting for thread availability
4. Memory Pressure: Sustained load causes indefinite queue growth, consuming increasing amounts of heap memory
5. System Failure: Without intervention, the queue can grow until OutOfMemoryError occurs

Performance Optimization Strategies

Optimizing Spring Boot application performance requires understanding the relationship between different configuration parameters and their impact on system behavior under various load conditions.

Thread Pool Configuration

Thread Pool Sizing: The optimal thread pool size depends on application characteristics and hardware resources. I/O-bound applications typically benefit from higher thread counts (100–400 threads) to accommodate blocking operations, while CPU-bound applications should use thread counts closer to CPU core count to minimize context switching overhead.

Memory Considerations: Each thread consumes stack space and may hold references to request-scoped objects. Monitor heap usage and garbage collection patterns when adjusting thread pool sizes to ensure memory consumption remains within acceptable bounds.

Dynamic Scaling: The minSpareThreads parameter ensures some threads remain ready for immediate request assignment, reducing latency during traffic spikes. However, excessive spare threads consume memory without providing proportional benefits.

Connection Parameter Tuning

Accept Count Optimization: Set acceptCount based on expected traffic burst patterns and acceptable connection rejection rates.

Connection Limit Management: Configure maxConnections based on system resource limits and expected concurrent user patterns. Monitor connection utilization to identify optimal settings for specific workloads.

Conclusion

Spring Boot’s HTTP request processing architecture implements a sophisticated but fundamentally constrained model for handling web traffic. The thread-per-request approach provides simplicity and request isolation but creates direct relationships between concurrent users, thread pool size, and system resource consumption.

The most critical limitation lies in the unbounded TaskQueue implementation, which can accumulate requests indefinitely under sustained load, potentially leading to memory exhaustion. This architectural gap requires custom solutions and careful monitoring in production environments.

Understanding these internal mechanics enables developers to make informed decisions about application architecture, configuration, and scaling strategies. Effective Spring Boot deployment requires balancing thread pool sizes, connection limits, and monitoring systems to handle production traffic while maintaining acceptable performance characteristics.

Success with Spring Boot applications depends on recognizing the constraints of the thread-per-request model and implementing appropriate mitigation strategies when application requirements approach or exceed these architectural limitations. Regular load testing, comprehensive monitoring, and capacity planning ensure applications continue to perform reliably as traffic patterns evolve.

By Yasindu Dilshan on September 20, 2025.
